The handy cordless tile cutter for easy mobile use
Powerful, compact and wireless: Cut tiles with Power X-Change
Cutting Machine Accessories
Cutting through hard materials cleanly? With a powerful machine and a robust, high-quality cutting disc, that’s no problem at all. Depending on whether you need to cut metal, tiles, or hard stone, you’ll require the right cutting disc for your machine. Our range includes high-quality cutting discs made from various materials, available in different diameters and thicknesses. This allows you to equip your tile cutter, metal-cutting machine, or stone-cutting machine perfectly for your specific task.
Overview of Accessories for Cutting Machines

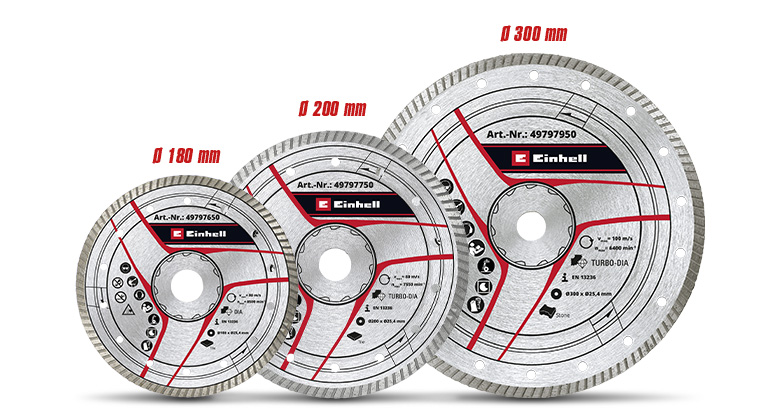

Diamond Cutting Discs
Our diamond cutting discs are true professionals when it comes to cutting hard materials. With diameters ranging from 180 mm to 300 mm and a standardised bore of Ø 25.4 mm, they fit perfectly with Einhell stone-cutting machines and tile cutters. Thanks to their high-quality diamond-coated cutting edges, they effortlessly handle tiles, fine stoneware, and travertine – or, depending on the model, even concrete, brick, and granite. Choose between closed cutting edges for precise, clean cuts or an open cutting edge with turbo segments for improved cooling when working with particularly hard materials such as marble or granite. With thicknesses ranging from 2.4 to 3.6 mm and cutting widths of 4 or 6 mm, there is a perfect disc for every application. Discover the ideal accessory for your projects!

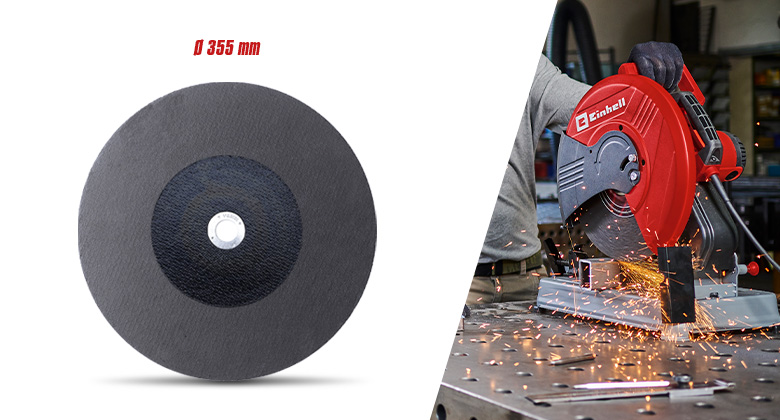

Metal Cutting Discs
When it comes to cutting metal cleanly and efficiently, our metal cutting discs are the perfect choice. With a diameter of 355 mm, a bore of Ø 25.4 mm, and a thickness of 3.2 mm, they are specifically designed for Einhell metal-cutting machines. Made from alloyed steel, these discs cut effortlessly through sheet metal, steel pipes, aluminium, copper, and even stainless steel. Engineered for speeds of up to 80 m/s and rotational speeds of up to 4,400 revolutions per minute, they deliver precise results. Cutting even the toughest metals becomes effortless. With this robust cutting disc, your metal-cutting machine is ready for any challenge!
Useful Information on Handling Metal and Diamond Cutting Discs
Using the Right Cutting Disc
To achieve optimal results, selecting the right cutting disc is essential. Before each use, check whether the disc is compatible with your machine. Key factors include diameter, thickness, bore size, and maximum rotational speed. If any of these specifications do not match, it can lead to rough cuts or even damage. Additionally, ensure you know which material you are working with. Diamond cutting discs are ideal for tiles, concrete, or stone, while metal cutting discs are best suited for steel, aluminium, or copper. Only with the right disc can you achieve clean cuts while working safely and efficiently.
Precise Cutting

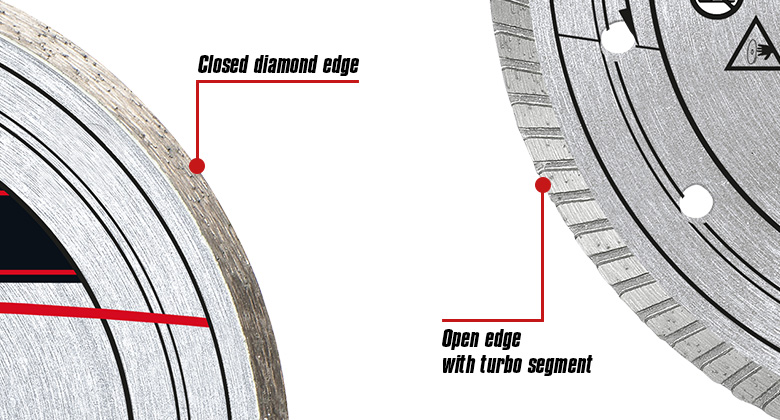

Cutting discs are true specialists in their field. However, it's important to remember that they are designed exclusively for cutting materials. For grinding tasks, use grinding discs specifically made for that purpose. When cutting, the right cutting edge makes all the difference: Closed diamond edges ensure clean, precise cuts, while open edges with turbo segments provide better cooling when cutting particularly hard materials. Turbo segments prevent the disc from overheating and the cutting edge from smearing. Important: Always check the condition of the cutting disc before you begin. Damaged or worn discs must be replaced immediately to prevent risks and ensure optimal results. This way, you can complete every project safely and effectively.

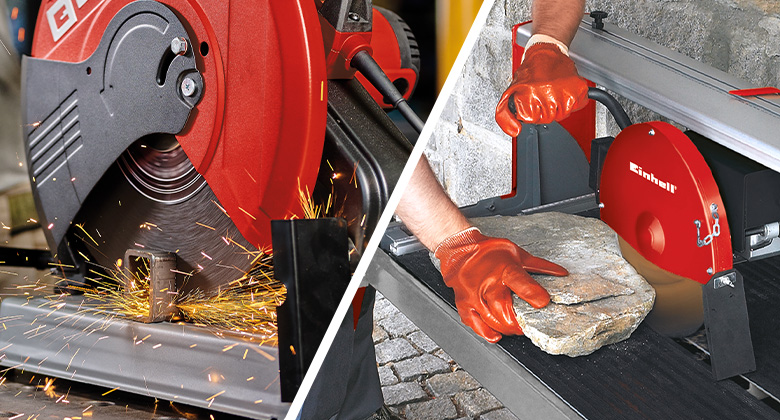

Safe and Proper Use
Safety is the top priority when working with cutting machines. Always check the rotation direction of your machine before use and ensure it matches the rotation direction of the disc. Secure your workpiece firmly to prevent any movement during cutting. Allow your machine to reach full rotational speed before making contact with the material – this ensures clean and precise cuts. Work without applying excessive pressure, as cutting discs are designed to cut with minimal force. Protect yourself with the appropriate safety gear, including eye and ear protection, gloves, and a dust mask, especially when working with dust-producing materials.
