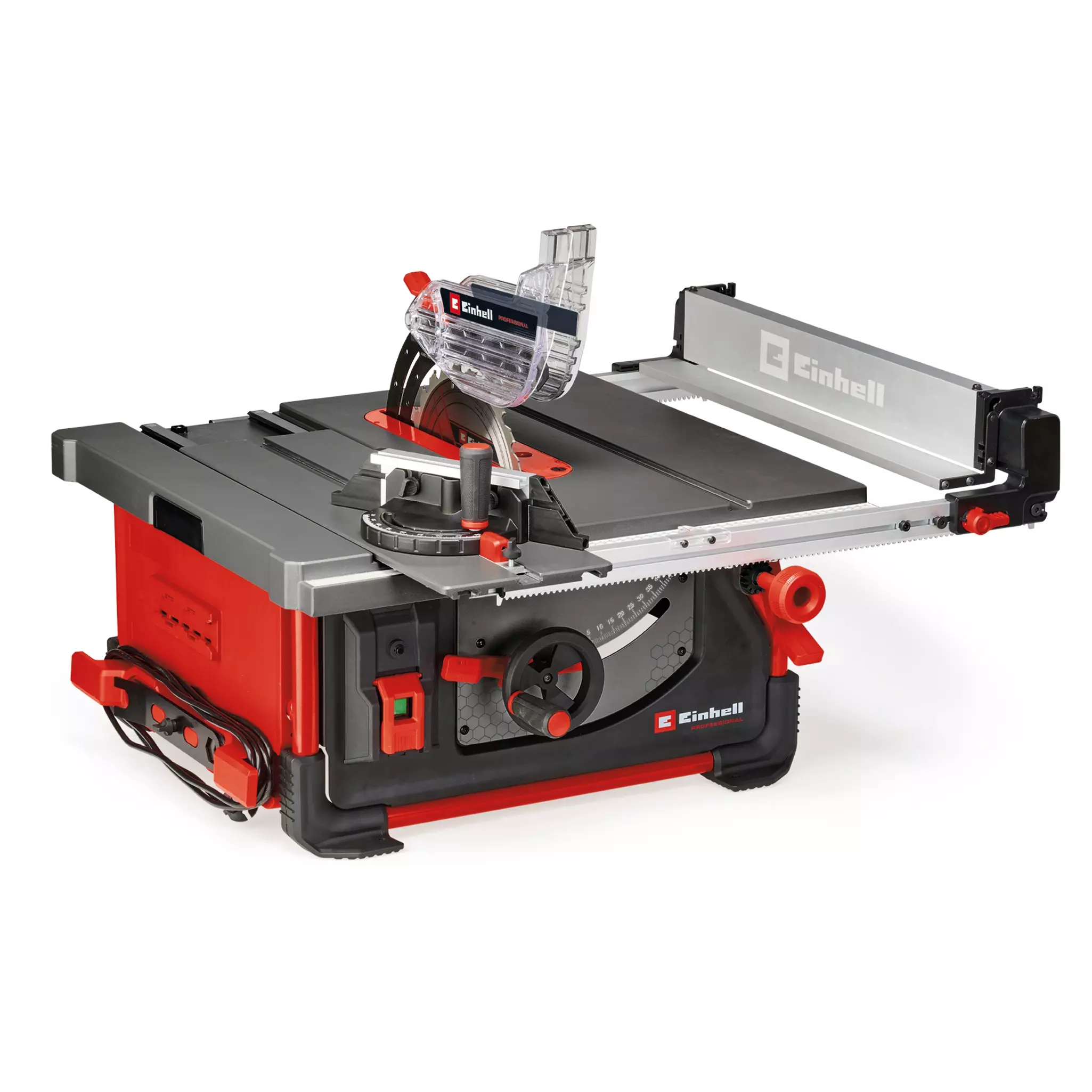

Table Saw
TP-CC 10 T
Item no:4340435EAN: 4006825671742
einhell-professional-table-saw-4340435-productimage-001
einhell-professional-table-saw-4340435-key_feature_image-001
einhell-professional-table-saw-4340435-example_usage-001
einhell-professional-table-saw-4340435-detail_image-001
einhell-professional-table-saw-4340435-detail_image-001
einhell-professional-table-saw-4340435-detail_image-002
einhell-professional-table-saw-4340435-detail_image-002
einhell-professional-table-saw-4340435-detail_image-003
einhell-professional-table-saw-4340435-detail_image-003
einhell-professional-table-saw-4340435-detail_image-004
einhell-professional-table-saw-4340435-detail_image-004
einhell-professional-table-saw-4340435-productimage-001
einhell-professional-table-saw-4340435-key_feature_image-001
einhell-professional-table-saw-4340435-example_usage-001
einhell-professional-table-saw-4340435-detail_image-001
einhell-professional-table-saw-4340435-detail_image-001
einhell-professional-table-saw-4340435-detail_image-002
einhell-professional-table-saw-4340435-detail_image-002
einhell-professional-table-saw-4340435-detail_image-003
einhell-professional-table-saw-4340435-detail_image-003
einhell-professional-table-saw-4340435-detail_image-004
einhell-professional-table-saw-4340435-detail_image-004
Table Saw

TP-CC 10 T

Item no: 4340435 EAN: 4006825671742
  • Sliding table for optimal feeding of the workpiece
  • Rip fence can be mounted on either side
  • Rail-guided rip fence with precision adjustment
  • Rip fence with foldable rail as table extension
  • Sturdy, aluminium angle stop with precision adjustment
  • Angle stop with 15° adjustment grid
  • Transparent, split blade guard for perfect visibility
  • Saw blade tilts up to 45° for mitre cuts
  • Riving knife with precision lateral adjustment
  • Sturdy aluminium work table
  • Ø 36 mm and Ø 63.5 mm (2.5") connections for dust extraction
  • Integrated carrying handle for easy transport
  • Transport position with accessory brackets
  • Sturdy steel-frame construction
  • Rubber feet for high stability and low vibration
  • Soft-start function to protect the motor and transmission
See more information
Show less information
Total 478.95478.95 EUR*
Configure your set
Accessories
Stationary Accessoryincl. suction adapter set Item no: 4310630
RRP 19.950.00
Table Saw
TP-CC 10 T
Item no: 4340435 EAN: 4006825671742
  • Sliding table for optimal feeding of the workpiece
  • Rip fence can be mounted on either side
  • Rail-guided rip fence with precision adjustment
  • Rip fence with foldable rail as table extension
  • Sturdy, aluminium angle stop with precision adjustment
  • Angle stop with 15° adjustment grid
  • Transparent, split blade guard for perfect visibility
  • Saw blade tilts up to 45° for mitre cuts
  • Riving knife with precision lateral adjustment
  • Sturdy aluminium work table
  • Ø 36 mm and Ø 63.5 mm (2.5") connections for dust extraction
  • Integrated carrying handle for easy transport
  • Transport position with accessory brackets
  • Sturdy steel-frame construction
  • Rubber feet for high stability and low vibration
  • Soft-start function to protect the motor and transmission
See more information
Show less information
einhell-professional-table-saw-4340435-productimage-001
Article description

The Einhell Professional TP-CC 10 T table saw features a sliding table, making it an indispensable tool for any workshop. The smooth-running sliding carriage makes it possible to saw even larger workpieces with precision. With 2,000 watts of power and a carbide-tipped Ø 254 mm blade, this is table saw you can rely on when working with wood. Whether you need to trim plywood and panelling, or cut joists and planks to length: the table saw handles any job thanks to 85 mm cutting height and its 45°-tiltable and height-adjustable blade. The cast aluminium work table with height-adjustable table insert with fine adjustment provides a stable, level support. The rip fence can be mounted on either side, with two mounting options on the right side, and can be adjusted precisely by means of a rotary knob. The rip fence has a foldable system that allows it to function as a table extension, but can also be attached right next to the saw blade for very narrow cuts. The solid aluminium angle stop has a 15° guide grid. The angle stop can be mounted on the sliding table and used to push the workpiece at a precise angle. The two-piece blade guard offers the advantages of optimal visibility of the cutting area and safety during operation. If the working area needs to be kept clean, any Einhell wet and dry vacuum cleaner can be connected to provide suction via the extraction adapter. The saw has a soft start function to protect both the motor and the fuses. The sturdy steel frame construction with rubberized feet ensures secure positioning of the table saw with low vibration, while multiple transport handles, a cable winder and brackets for all attachments and accessories facilitate transport.

See more information
Show less information

Technical details

% power S625 %
Angle stop max.60 °
Angle stop min.-60 °
Cutting height85 mm
Idle speed max.4200 min^-1
Max. cutting capacity (right)615 mm
Motor typeBrush motor
Number of saw blade 1 teeth24 pcs
Number of saw blades included in delivery1 pcs
Power S62000 W
Product weight20.79 Kg
Rip fence fasteningFront/Rear
Saw blade 1 diameter254 mm
Suction typeOn the housing
full_width_image

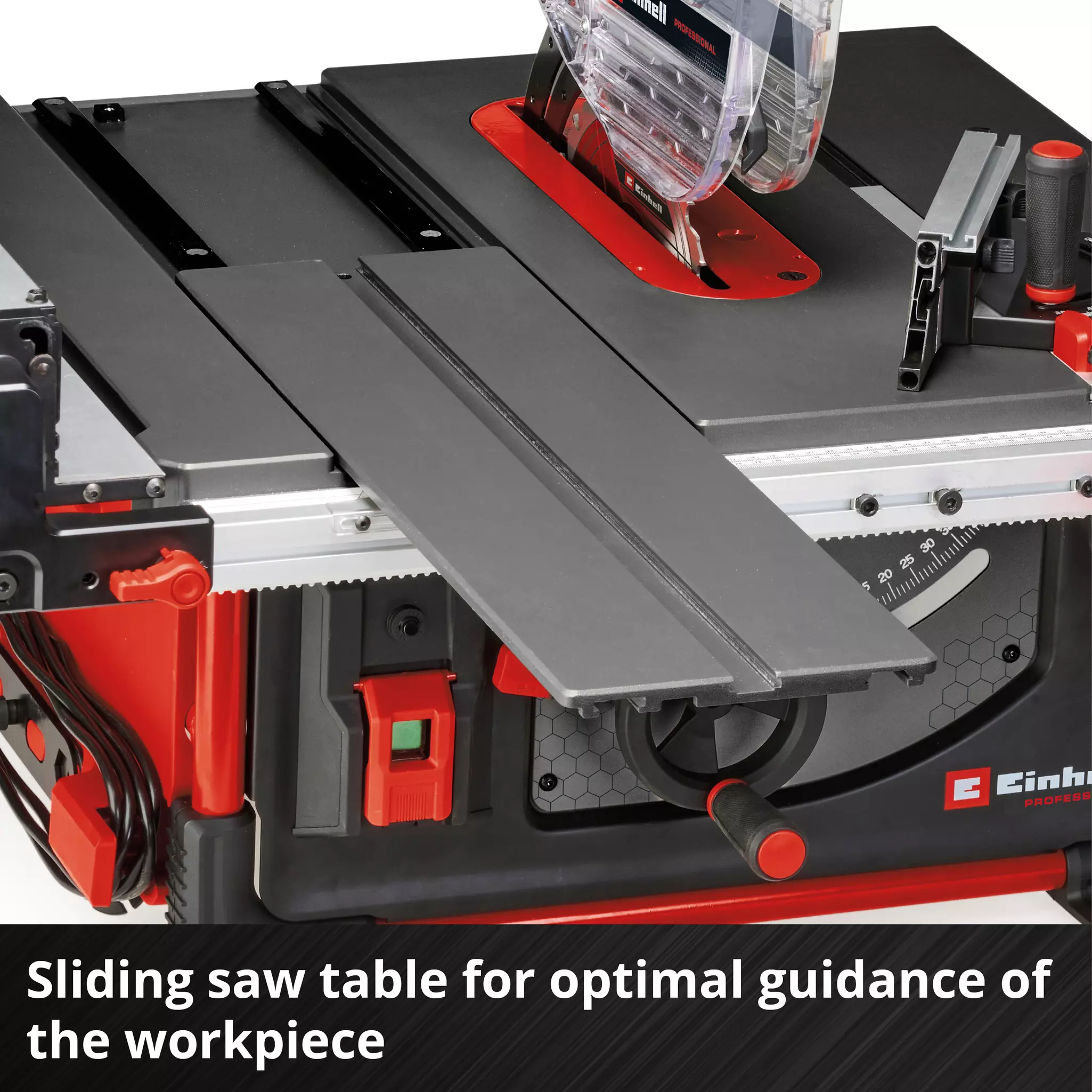

Saw with sliding table

Powerful table saw for large workpieces

The Einhell Professional TP-CC 10 T table saw is equipped with a smooth-running sliding table, meaning it can handle even larger workpieces. The table saw comes with a high-quality, carbide-tipped saw blade (Ø 254 mm) for comprehensive sawing applications. The 2,000 W table saw operates with a no-load speed of up to 4,200 rpm.

Saw-with-sliding-table
Tilting-blade

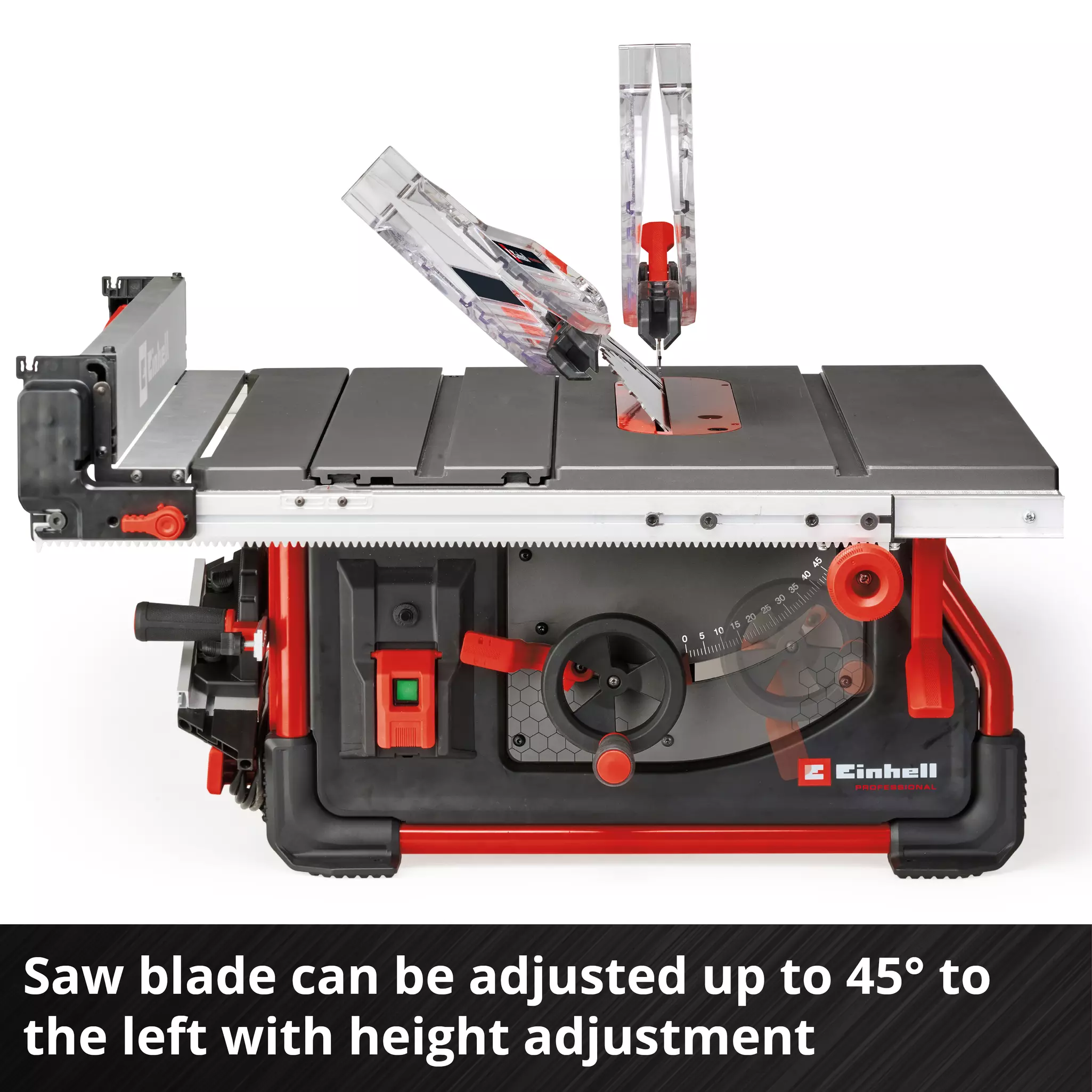

Tilting blade

Both the height and the angle of the saw blade can be adjusted easily and freely.

Stability

Stability

With its sturdy frame construction and rubberised feet, the saw is particularly stable and low in vibration.

Portable-applications

Portable applications

The compact design which incorporates transport handles means the saw is easy to store, and makes it perfect for portable applications.

Clean-working

Clean working

To keep the work area clean at all times, any wet/dry vacuum cleaner can be connected to the extractor connection.

Neat-storage

Neat storage

In addition to the cable winder, the housing of the table saw also incorporates several brackets. These provide space for accessories and attachments, so that the saw can be transported compactly but at the same time keep everything at hand.

Safe-and-precise-operation

Safe and precise operation

The two-piece blade guard can be easily removed for transport. It protects against injury while working with the saw and ensures a perfect view of the cutting edge thanks to its separately movable parts.

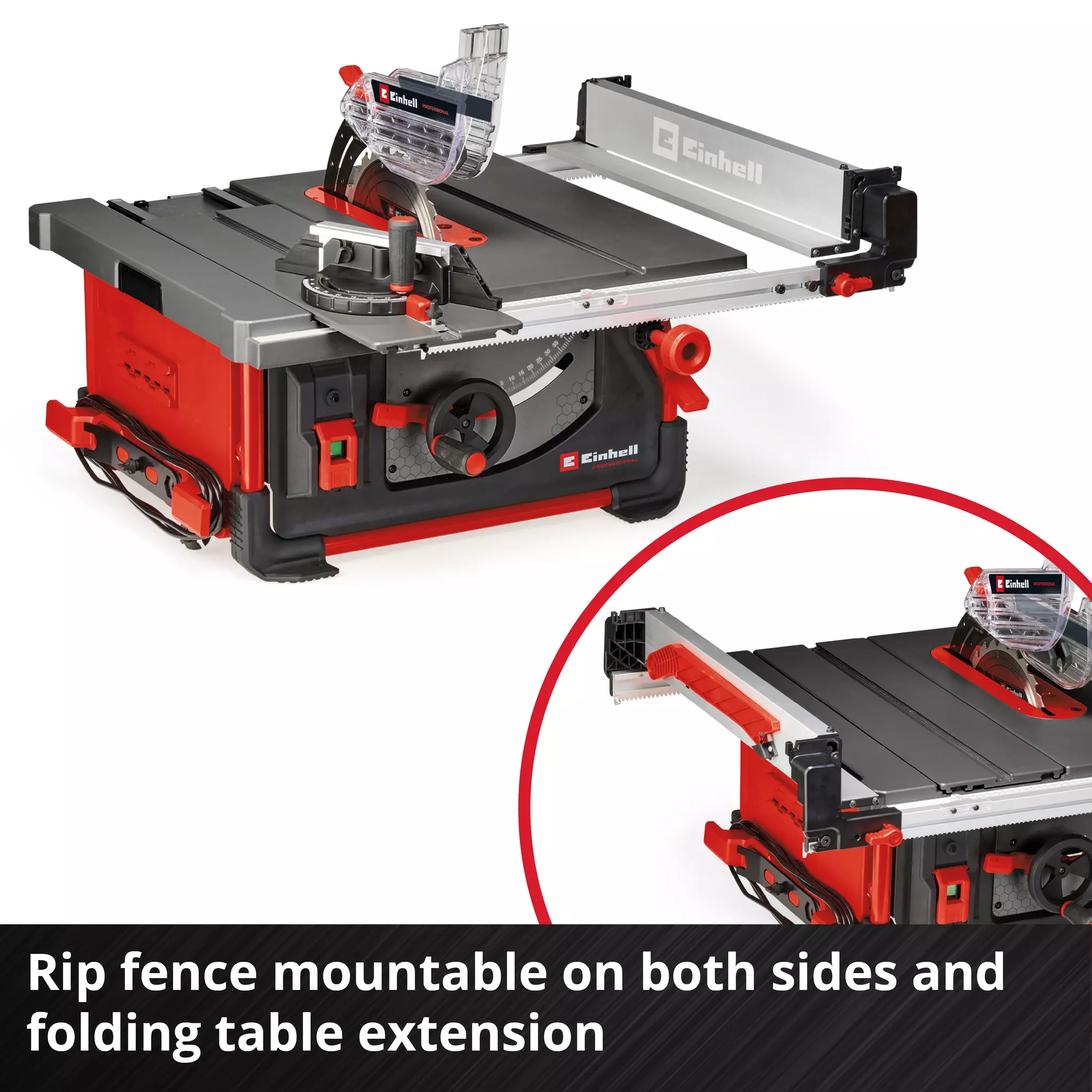

Mounting-on-either-side

Mounting on either side

Depending on the workpiece and task, the rip fence can be attached to the left or right of the saw.

Precise-Adjustment

Precise Adjustment

The rail-guided rip fence can be adjusted with very high precision and accuracy via a rotary knob.

Height-adjustment

Height adjustment

The rip fence can be used in two ways: as an extension of the saw table or as a stop directly on the saw blade.

Selectable-Position

Selectable Position

When attaching the rip fence is attached to the right hand of the saw, you can choose between two positions.

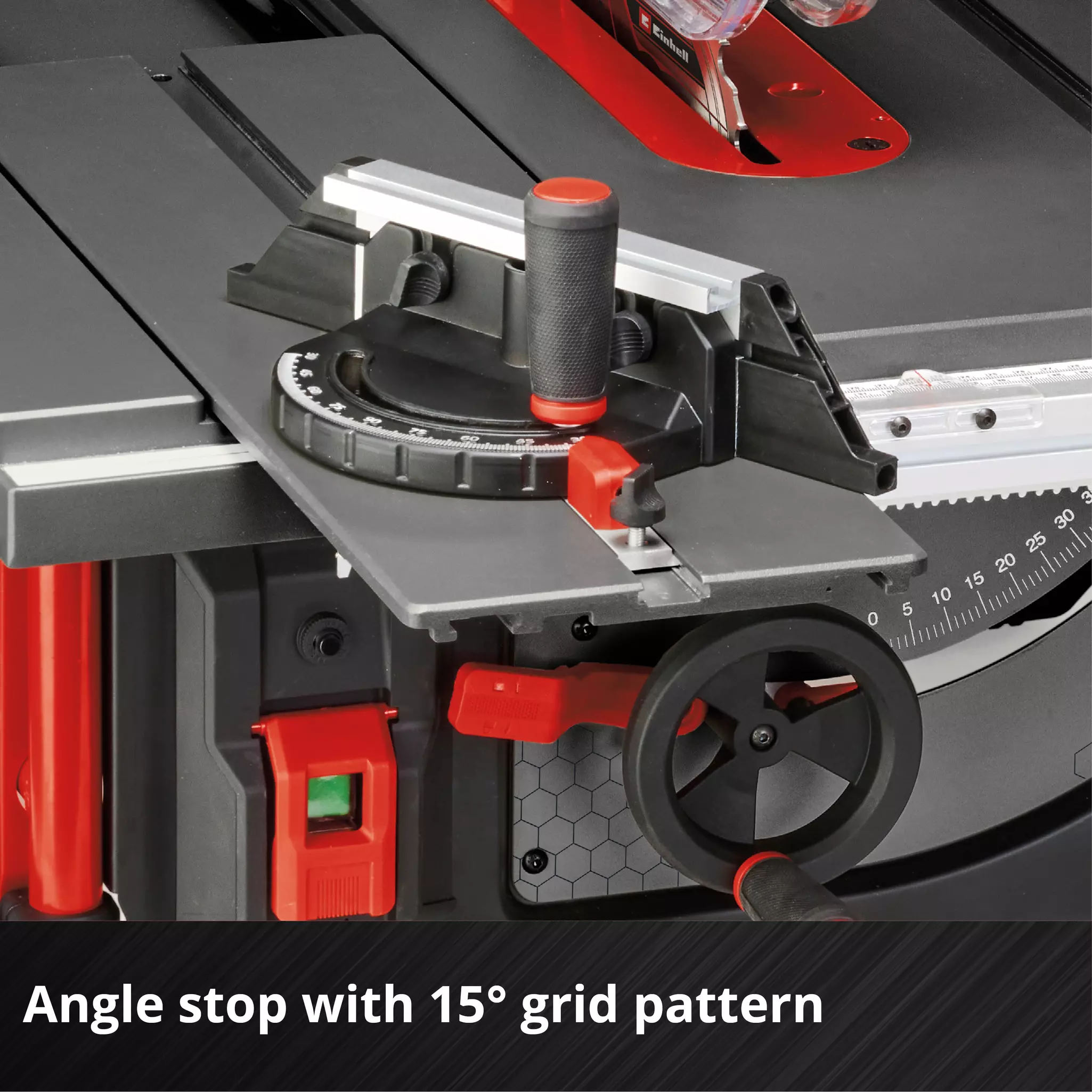

Precise mitre cuts

Precisely adjustable angle stop

The solid angle stop can be adjusted accurately and precisely thanks to the grid guide – whether in 15° increments or down to the degree. This way means any angle can be sawn precisely and that successive mitre cuts can be made without any issues. In addition, the angle stop can be fixed to the saw table and guided with the sliding carriage. Place the workpiece against the angle stop and you are ready to go.

Precise-mitre-cuts
